EATON CONTROLS (CUTLER-HAMMER)
L-SW OPRTG HEAD

Mouse over image to zoom, click to enlarge

Description:

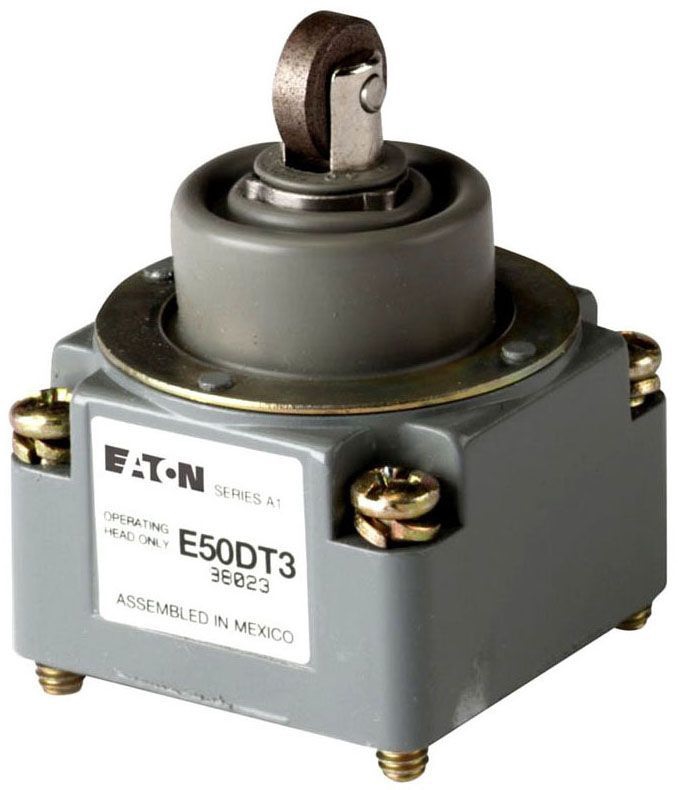

L-SW OPRTG HEAD

UPC:  78211329061

Part Number: E50DT3

UNSPSC: 39122221

Status:  UNKNOWN

Your Price:  $256.82 / EA


Quantity  EA

Specifications

Manufacturer Name EATON CONTROLS (CUTLER-HAMMER)
MfgPartNo E50DT3
Additional Information Enclosure Material Die-Cast Zinc
Application Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number E50DT3
Commerce Sector Construction Materials
Commodity Code 46170
Commodity Description Limit Switch Heads
CountryOfOrigin MX
DDCATEGORY 2187
Depth 1.54 in
Dimensions 1.8800 IN X 1.5400 IN X 1.7800 IN
Directory CIS
Families 2187
Family Description Limit Switch Heads
Height 1.78 in
Image Location * Image
Industry ELX
InvoiceDescription E50 HEAVY DUTY LIMIT SWITCH;L-SW OPRTG HEAD
Item Number 29061
Long Description LIMIT SWITCH OPERATING HEAD, TOP PUSH ROLLER TYPE; E50/E50 6P/10316 SERIES LIMIT SWITCH USED ON; SPRING RETURN OPERATION TYPE; UL, CSA, CE APPROVAL; 14 TO 250 DEG F (WITHOUT CABLE), 14 TO 221 DEG F (WITH CABLE) OPERATING TEMPERATURE
MSDS Form Number *
Material Die cast zinc
Model E50
Noun *
Operating Force 4 Pound
Operating Temperature 14 to 250 Deg F (Without Cable), 14 to 221 Deg F (With Cable)
Operating Temperature Maximum 14 F
Operating Temperature Minimum 14 F
Operating Travel 0.04 Inch
Operation Type Spring Return
Product Description L-SW OPRTG HEAD
Product Keywords WEBREADY
Product Name Switch part or accessory
ProductLine C-H
Reset Travel 0.02 Inch
Standard CSA Certified,UL Recognized,UL Listed,RoHS Compliant,CE Marked
Total Travel 0.28 Inch
Type Heavy duty plug-in limit switch;Top Push Roller
UNSPSC 39122221
UPC 78211329061
Used On E50/E50 6P/10316 Series Limit Switch
Vendor Name EATON DISTRIBUTION EQUIPMENT/CONTROLS
Vendor Number 782113
Vendor Short Name CH3
Width 1.54 in

Resources

CatalogNumber E50DT3
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
